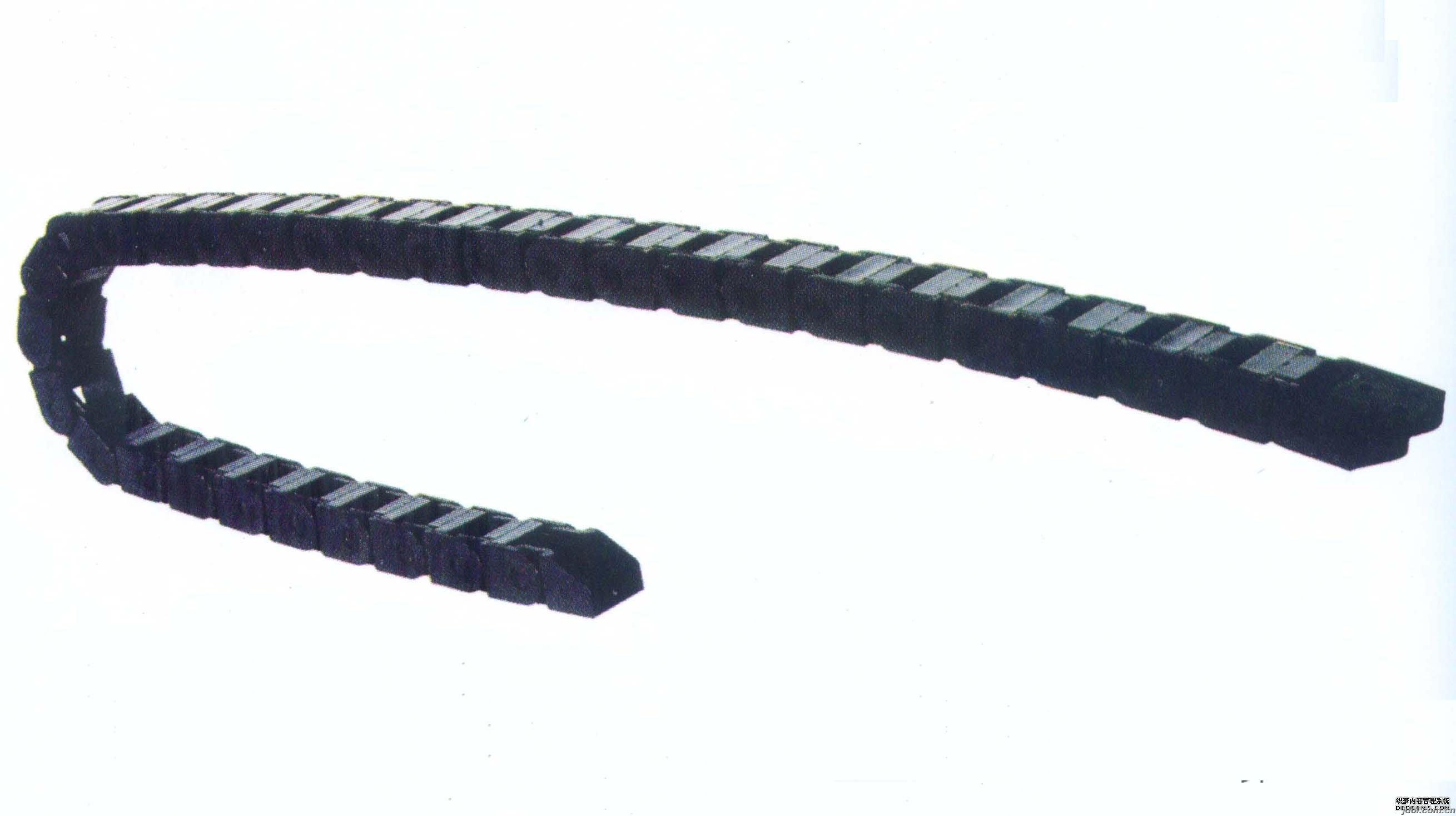

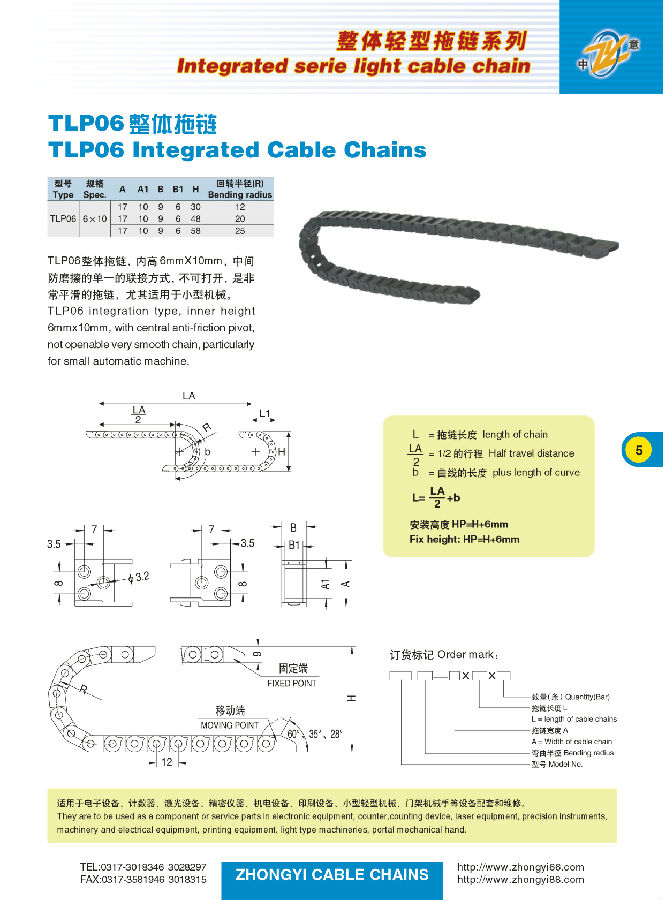

Product features: (1) and tank chain drag chain, consisting of many unit links, links between rotating freely. (2) within the same series of drag chain, outside the high, high pitch, the same width, bending radius R inside the drag chain can have a different choice. Link (3) the unit is composed of about chain plate and the cover plate, drag chain every day to open, convenient installation, without threading, open the cover plate after put cable, tubing, the trachea and conduit in the drag chain. (4) the other available space, space according to the need to separate the chain. The TLP06 overall drag chain's details:
The purpose and characteristics of drag chain
Suitable for use in reciprocating motion situation, to the built-in cable, tubing, the trachea, water pipes, such as traction and protection effect, drag chain every day to open, easy installation and maintenance. When motion low noise, wear-resisting, high speed movement. Drag chain has been widely used in nc machine tools, electronic equipment, stone machinery, glass machinery, door machine, injection molding machine, manipulator, lifting transport equipment, automatic warehouse etc.
The classification of plastic drag chain
Plastic drag chain according to the structure can be divided into the I bridge type plastic drag chain with fully enclosed plastic drag chain; According to the model is divided into small drag chain, plain drag chain with large drag chain, according to the noise coefficient can be divided into ordinary drag chain and mute drag chain; According to the form can be divided into ordinary drag chain, parallel drag chain, s-shaped drag chain; According to the raw material is divided into the original package of plastic and recycled plastic, etc.
The structure of the plastic drag chain
(1) and tank chain drag chain, consisting of many unit links, links between rotating freely. (2) within the same series of drag chain, outside the high, high pitch, the same width, bending radius R inside the drag chain can have a different choice. Link (3) the unit is composed of about chain plate and the cover plate, drag chain every day to open, convenient installation, without threading, open the cover plate after put cable, tubing, the trachea and conduit in the drag chain. (4) the other available space, space according to the need to separate the chain.
The basic parameters of plastic drag chain
1) material: reinforced nylon, has the high pressure and tensile load, good toughness, high elasticity and abrasion resistance, flame retardant, high and low temperature performance is stable, can be used in outdoor, the amount of nylon determines the use of drag chain strength and abrasion resistance, and run up to the size of the noise. Nylon content ranging from 5% to 17%, but more than 19%. (2) the resistance of patience: resistance to oil, salt, and have certain ability of acid and alkali resistance. (3) the speed and acceleration (specific speed, acceleration depends on the operating conditions). (4) operating life.
